BAG FILLERS

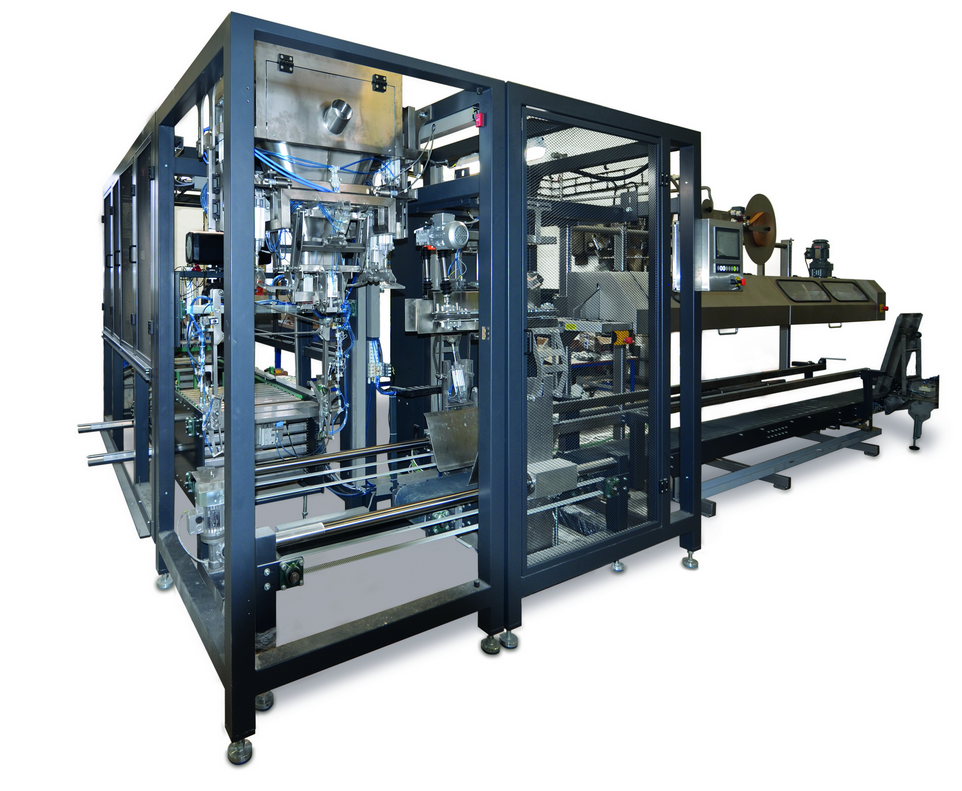

SAPLI AUTOMATIC BAG POWDER FILLER

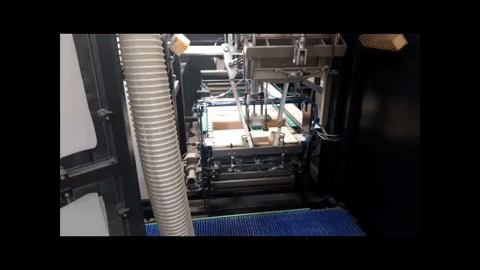

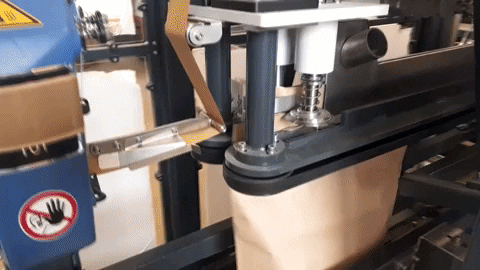

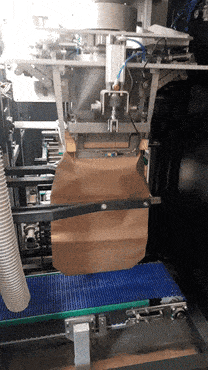

Automatic bagging packaging machine. Fill products into the finished paper or plastic bags. ABPF100 withdraws a bag from the reservoir, opens the bag to fill it with product, moving, forming, closing and pushing the bag out for further processing. The dosing equipment is installed depending on the product type – pastries, granulates, pellets…

Technical Features
• Filling volumes from 1kg to 25kg
• Output up to 200 bags/hour (25Kg)
• Magazine for automatic bag feeding
• Weighing unit with 2 load cells
• Platform on the bagging machine
• Output conveyor
• Remote control system
• Sew machine including frame, cotton sensor, bag sensor, connection with central, system and inspection
• PLC control via touch-screen panel

OPTIONS
• Checkweigher
• Vacuum cleaner for dusty product
• Input conveyor
• Vibratory funnel
• Roller transportation conveyor
