EMPTY CONTAINERS AIR CLEANING SYSTEM

EMPTY CONTAINERS AIR CLEANING SYSTEM

Containers enter into twister tunnel, then they are turned from open side up to open side down, and possible dust and dirty particles fall down. Dust Aspiration System collects all dust into Dust Hopper. Two ionising nozzles blow air inside containers, assuring that all dirty is removed from packaging corners and is not stuck to the walls. After this operation, the containers are turned again from open side down to open side up and moved forward to the next production stages by handling conveyor.

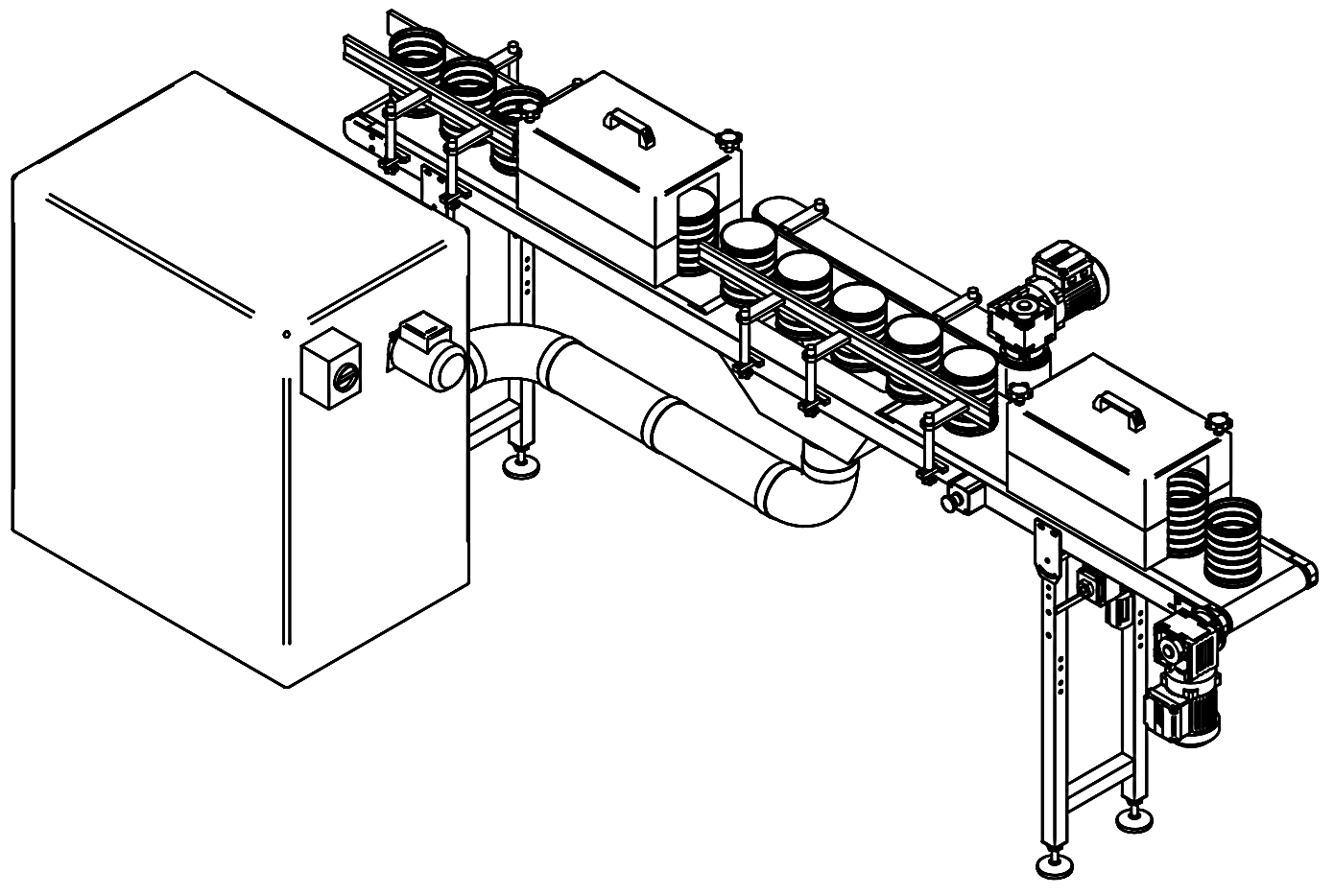

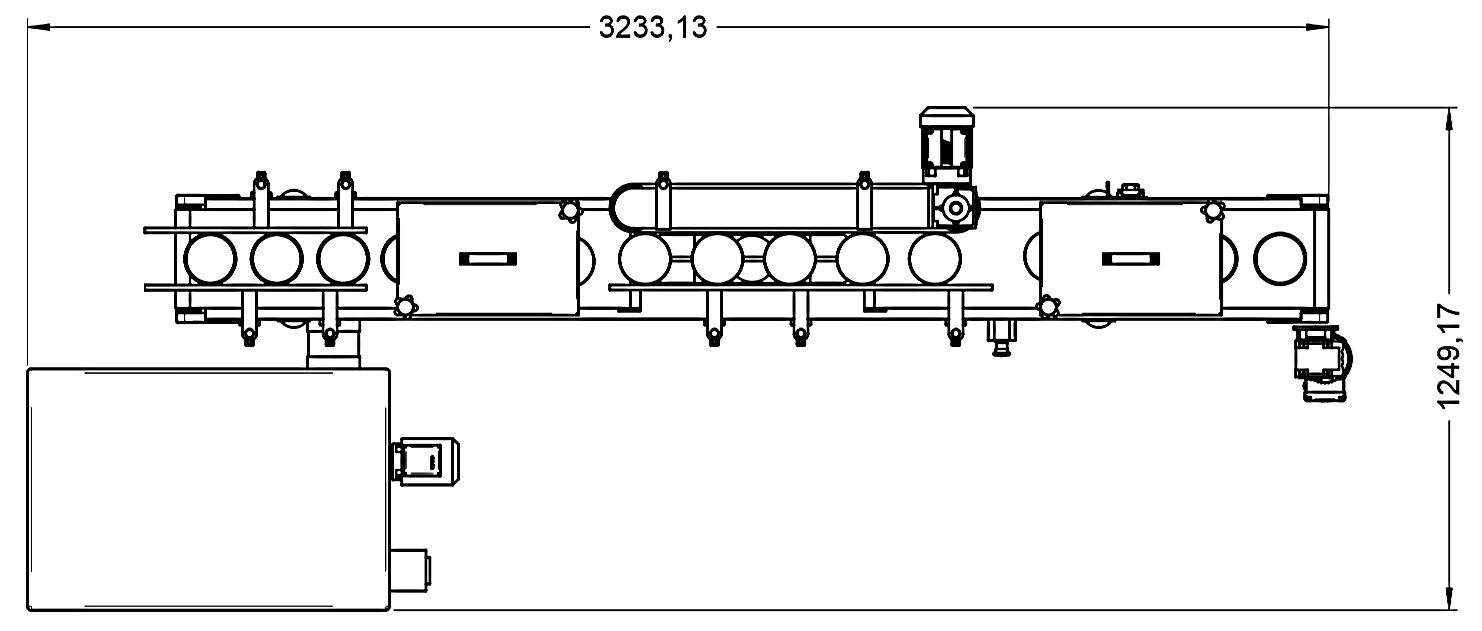

Sapli’s Empty Containerss Cleaning System allows cleaning all possible dust from the packaging inside. The system is composed by:

1. Container Twister: (open side up to open side down)
2. Air Cleaning System with two ionising nozzles (anti-static system)
3. Dust Collection System (with dust hopper)
4. Container Twister: (open side down to open side up)
5. Handling Conveyor
