ROTARY FILLER

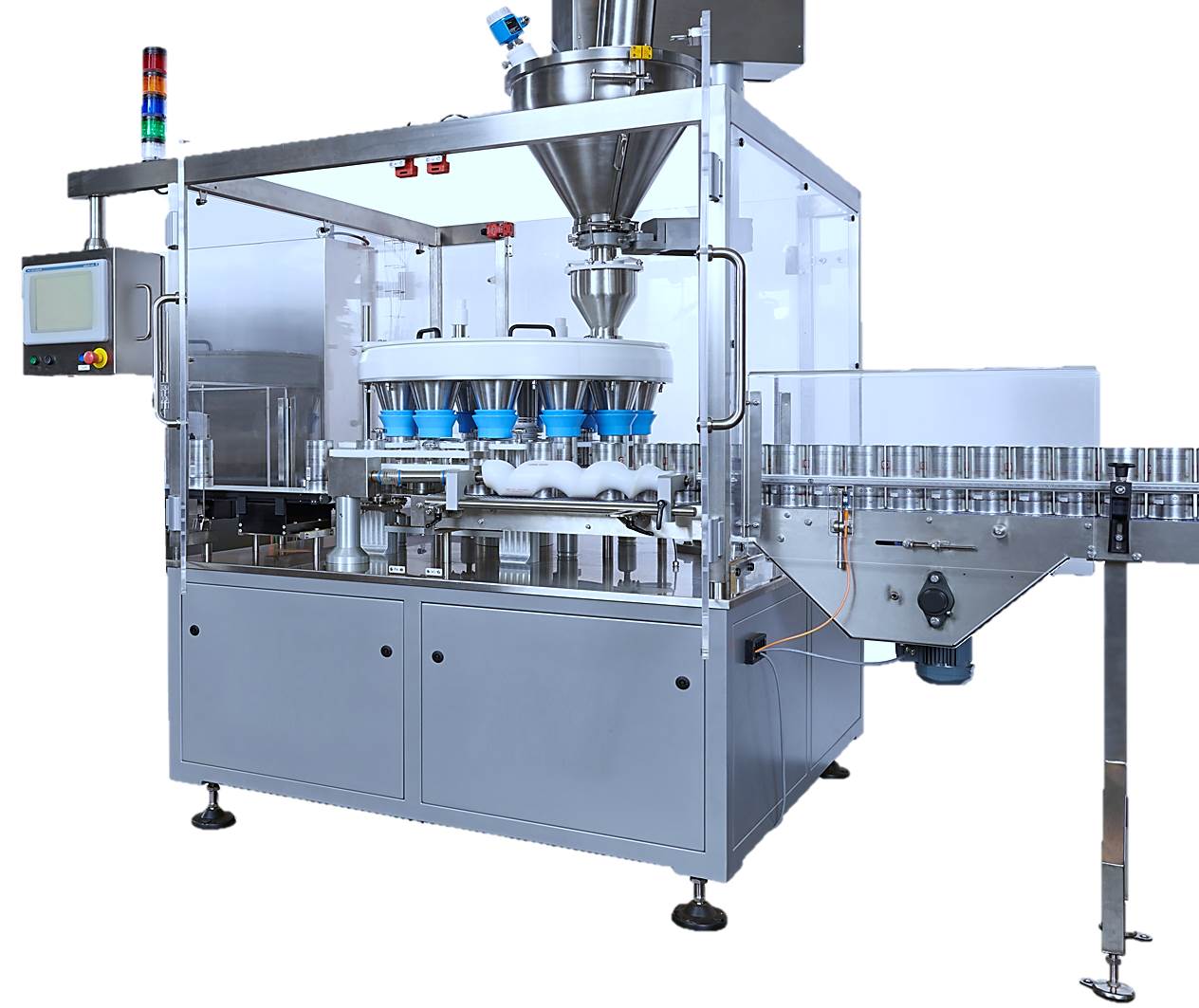

HIGHLY ACCURATE ROTARY POWDER FILLER

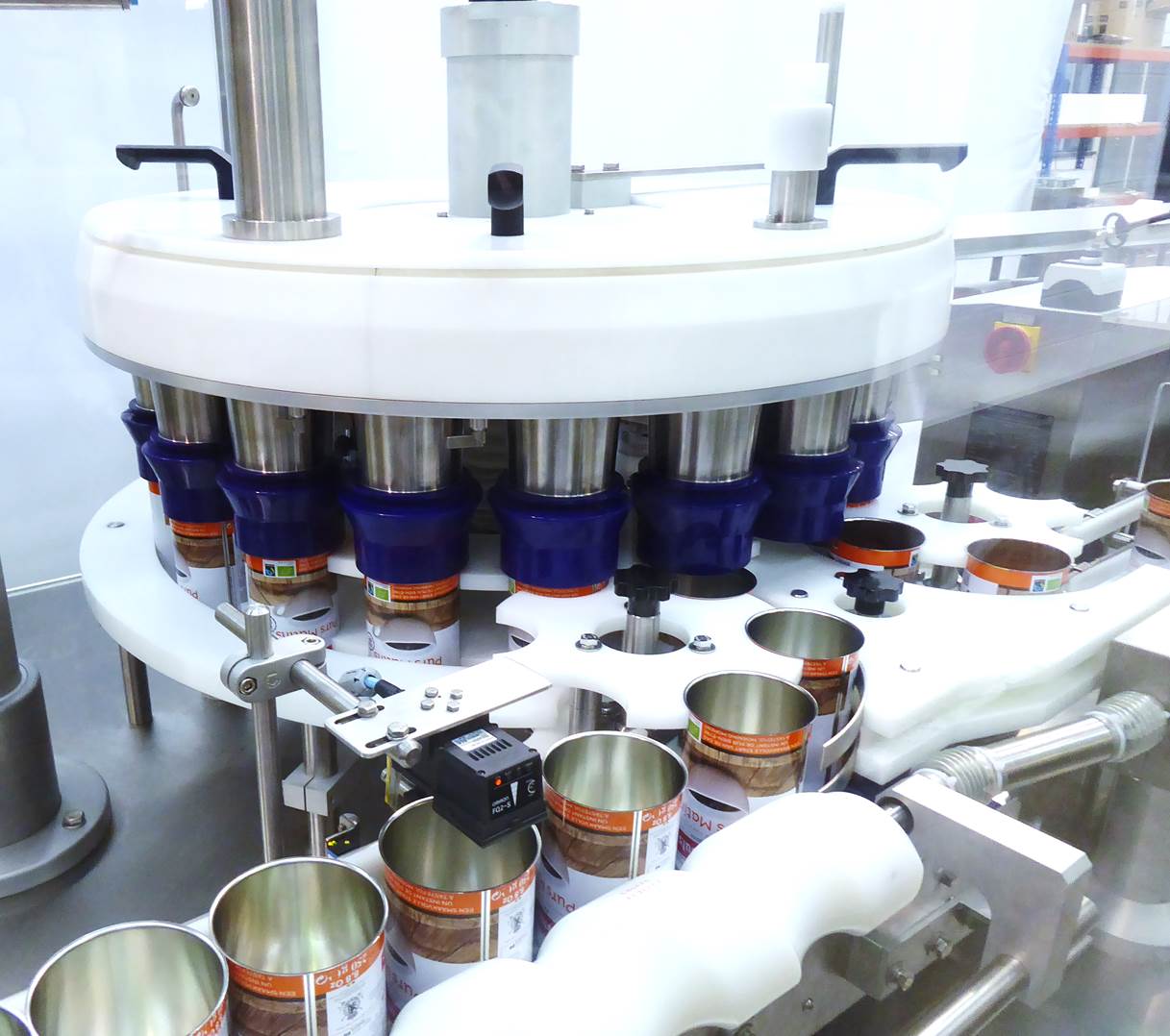

Continuous or Intermittent motion highly Accurate Rotary Powder Filler is a suitable solution for a wide range of powdered and granule products to be filled with medium and high production rates. One or more filling stations options, depending on product flow characteristics and a packaging formats. Rotary machines are available with over turrets of 12 to 48 pockets, with outputs up to 400 containers per minute. These can be integrated with gross or tare and gross check-weigher feed-back systems

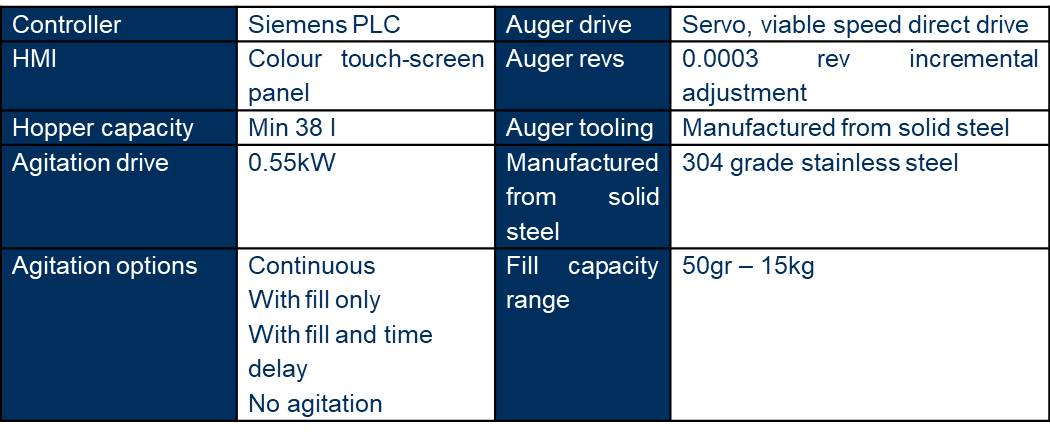

Standard Technical Features:

• Quantity of filling stations and turrets changes depending on required production rate

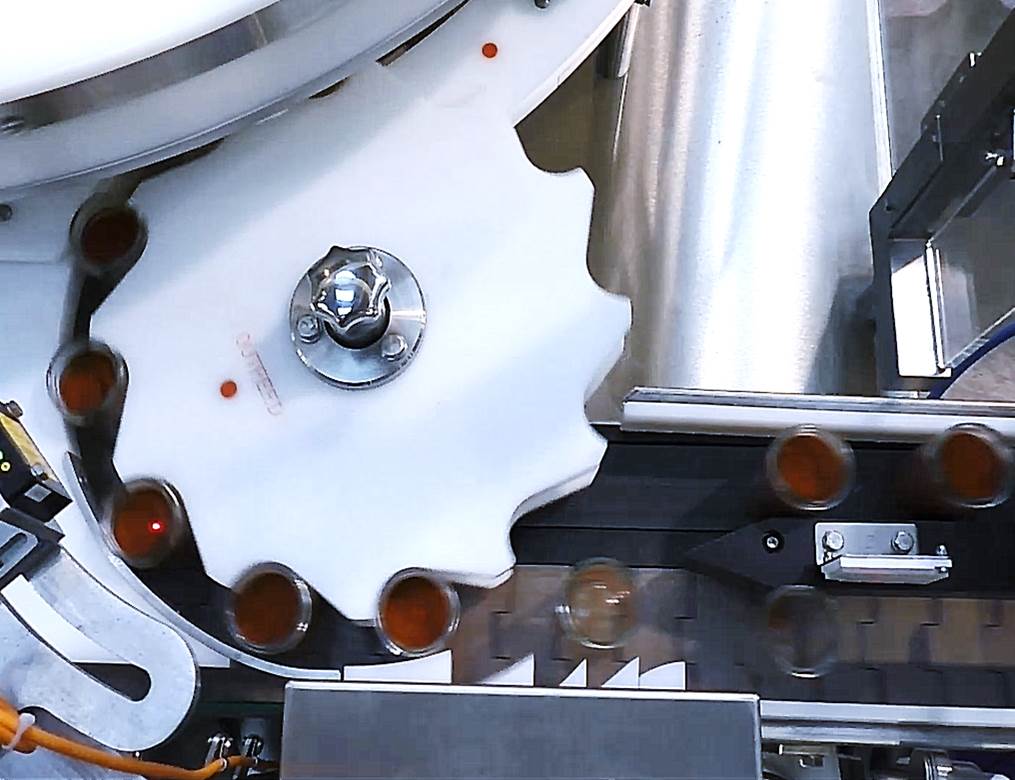

• One infeed and outfeed star wheel

• Clean filling process with completely sealed turrets with food grade seals

• Intuitive user-friendly interface

• Dust retention and extraction system

• High precision auger machined from solid

• Food grade stainless-steel parts in contact with the product

• Easy and simple format change without tools

• eWON VPN Router for Sapli remote technical support

• No bottle – no fill safety system

• Hopper coupling, self-aligning, quick disconnect

• Automatic base cabinet

• Servo-motor for auger drive, variable speed brushless direct drive with no pulleys, clutch/brake or belts, totally enclosed with integral precision shaft encoder

• Steel funnels with quick release fittings to allow for tool free removal for cleaning, if required

The filler is able to fill with a high precision a wide range of products and volumes. The filling capacity is from 50ml to 2000 ml for each station.

Volumetric or Gravimetric filling principle can be applied depending on the product requirements. Depending on the density and chemical features of the product optional lifting and vibrating operation can be added in order to fill the product in the most optimal way.

For glass bottles and other containers of inconsistent weight, integrated tare-and-gross weigh systems provide 100% nett weight validation.
